Well Seal, Fernco, Single Leachate Ext.

Well Seal, Fernco, Single Leachate Ext.

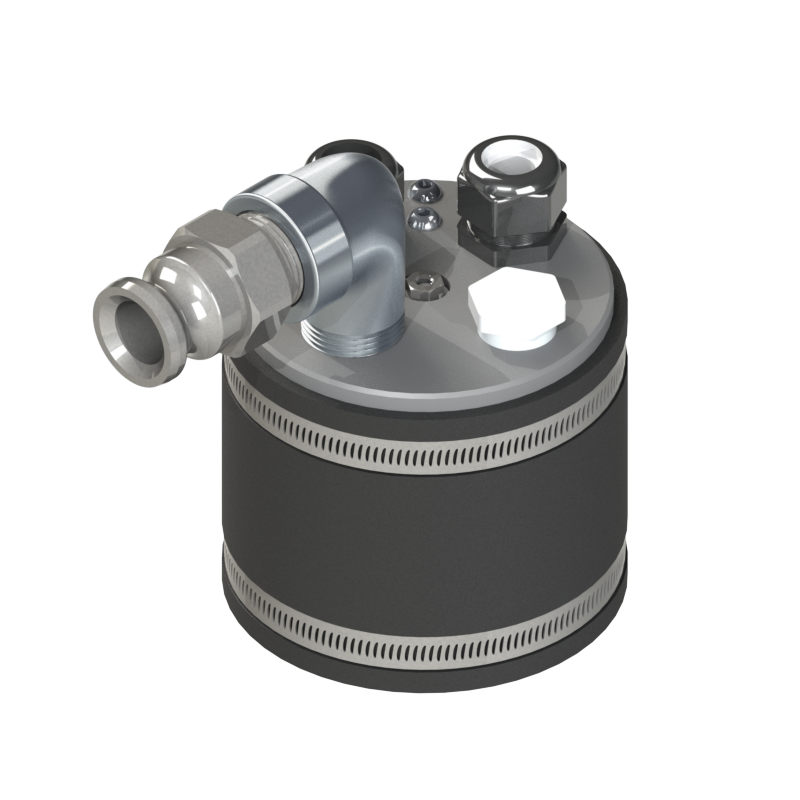

The Fernco-Type Single Extraction Well Seal is designed to mount to the top of a 4” or 8” well. With ports & fittings for the air supply, exhaust and discharge for the pump tubing. It is also equipped with (2) ¼”-20 screws for any type of air/filter regulator mounting bracket and a ½” port which comes plugged for well monitoring / dipping.

Part Number 2000058 – Well Seal, 4” Fernco, Single Leachate Ext., Barbed

Files

Bill of Material, Exploded View

Alternate Assemblies
  • Part Number 2000158 – Well Seal, 8” Fernco, Single Leachate Ext., Barbed

* All BOM’s available upon request *



BILL OF MATERIAL
3000090
ITEM NO.PART NO. DESCRIPTIONQTY.
11000368PLUG, 1/2" PVC 1
21000378CAP SCREW, 1/4"-20 X 3/8" BUTTON SOCKET 2
31000372PASS THRU, 5/8" OD, EXHAUST1
41000218WELL SEAL, 4" CORE 1
51000375WASHER, FLAT, 1/4" NEOPRENE BONDED, SS2
61000376WASHER, LOCK, 1/4, SS 2
71000377NUT, HEX, 1/4, SS 2
81000374EYE BOLT, 1/4"-20 X 4, SS1
91000220FERNCO, 4" X 4" COUPLING1
101000857HOSE BARB, CUSTOM, DISCHARGE, 1" NPT, SS1
111000403CAM-LOCK, 1", TYP F, SS1
121000402ELBOW, STREET, 1", SS1
131000373PASS THRU, 1/2" OD, AIR IN1
