| ITEM NO. | PART NO. | DESCRIPTION | QTY. |
|---|---|---|---|
| 1 | 1000367 | PLUG, 3/4" PVC, THREADED | 1 |
| 2 | 1000373 | PASS THRU, 1/2" OD, AIR IN | 1 |
| 3 | 1000378 | CAP SCREW, 1/4"-20 X 3/8" BUTTON SOCKET | 2 |
| 4 | 1000374 | EYE BOLT, 1/4"-20 X 4, SS | 1 |
| 5 | 1000324 | FLANGE, 6" CORE, SINGLE LEACHATE EXT., PASS THRU | 1 |
| 6 | 1000375 | WASHER, FLAT, 1/4" NEOPRENE BONDED, SS | 2 |
| 7 | 1000376 | WASHER, LOCK, 1/4, SS | 2 |
| 8 | 1000377 | NUT, HEX, 1/4, SS | 2 |
| 9 | 1000366 | PASS THRU, 1" OD, DISCHARGE | 1 |
| 10 | 1000372 | PASS THRU, 5/8" OD, EXHAUST | 1 |

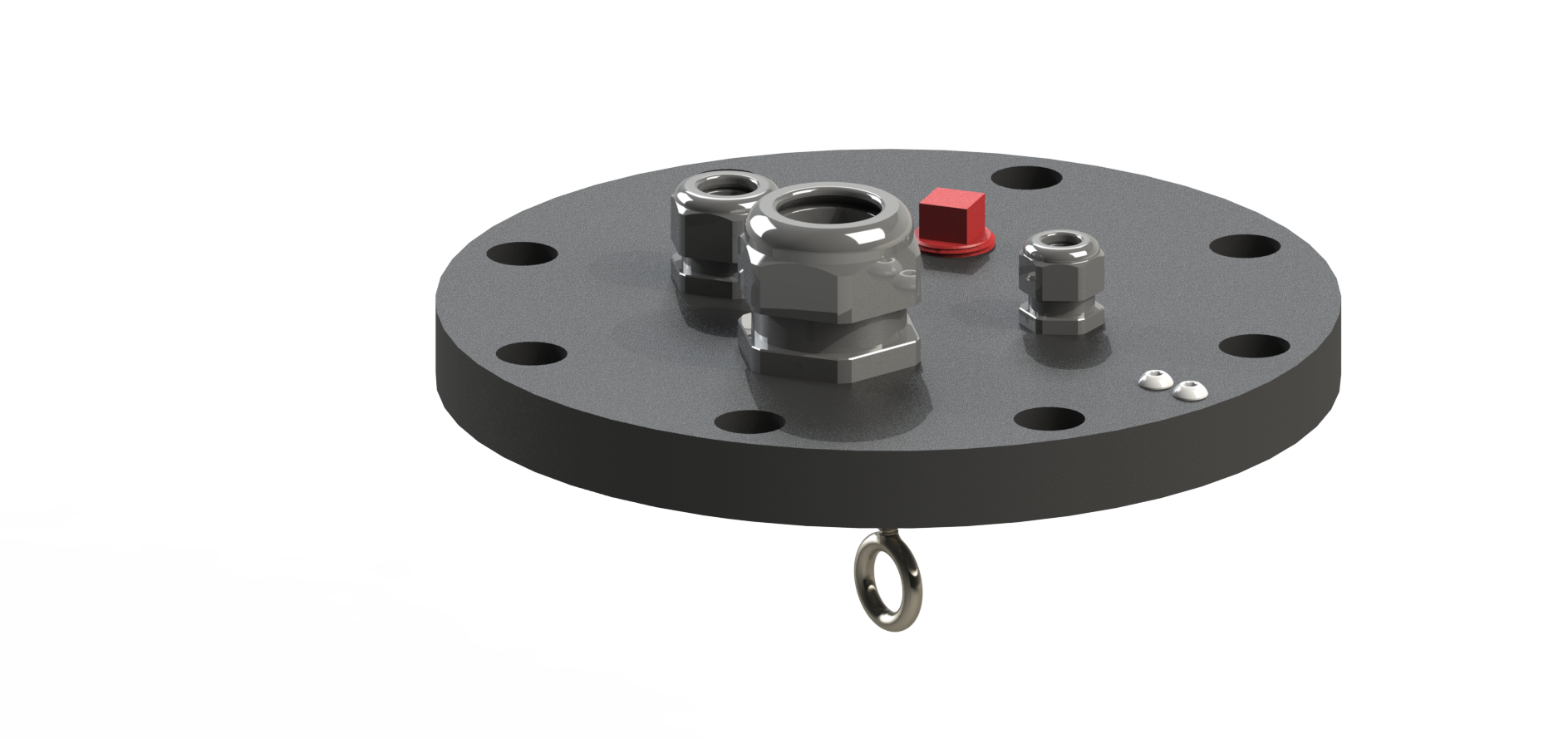

Well Seal, 6″ Flange, Single Leachate Ext., Pass Thru
Well Seal, 6″ Flange, Single Leachate Ext., Pass Thru
Files
Bill of Material, Exploded View
Part Number: 2000062
3000037
