PVC Leachate Discharge Kit, Valve Manifold

PVC Leachate Discharge Kit, Valve Manifold

Files

Bill of Material, Exploded View

Alternate Assemblies
  • Part Number 2000189 – PVC Leachate Discharge Kit, Valve Manifold, 1”

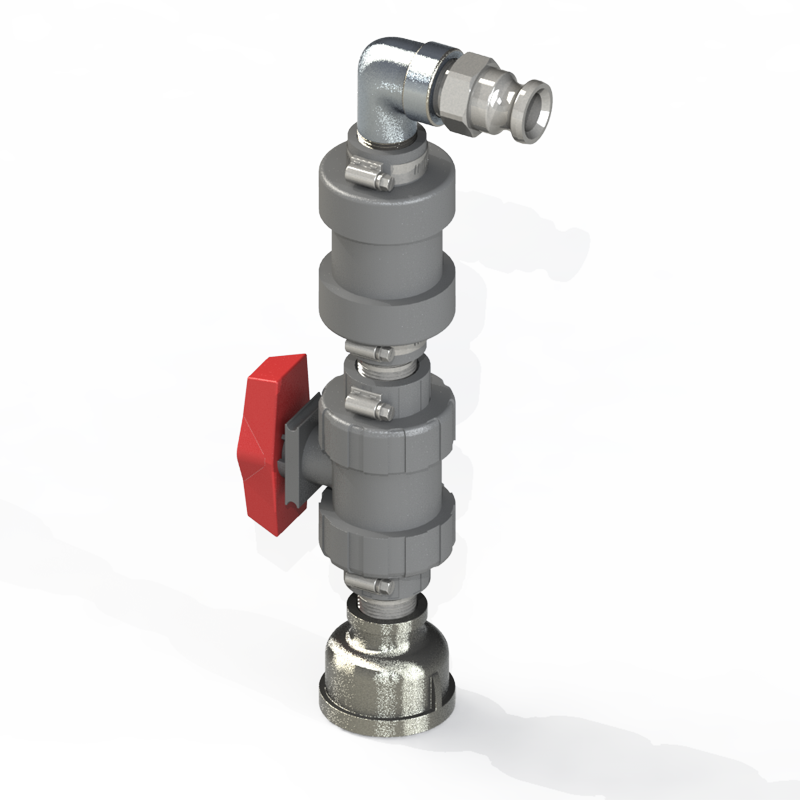

  • Part Number 2000190 – PVC Leachate Discharge Kit, Valve Manifold, 2”
BILL OF MATERIAL
3000169
ITEM NO.PART NO. DESCRIPTIONQTY.
11000403CAM-LOCK, 1", TYP F, SS1
21000402ELBOW, STREET, 1", SS1
32000117PVC, TRUE UNION BALL CHECK VALVE, EPDM, ASSEMBLY1
41000398NIPPLE, 1" X CLOSE, SS 2
52000116PVC, TRUE UNION BALL VALVE, EPDM, ASSEMBLY1
61000400BELL REDUCER, 2" X 1", SS1
