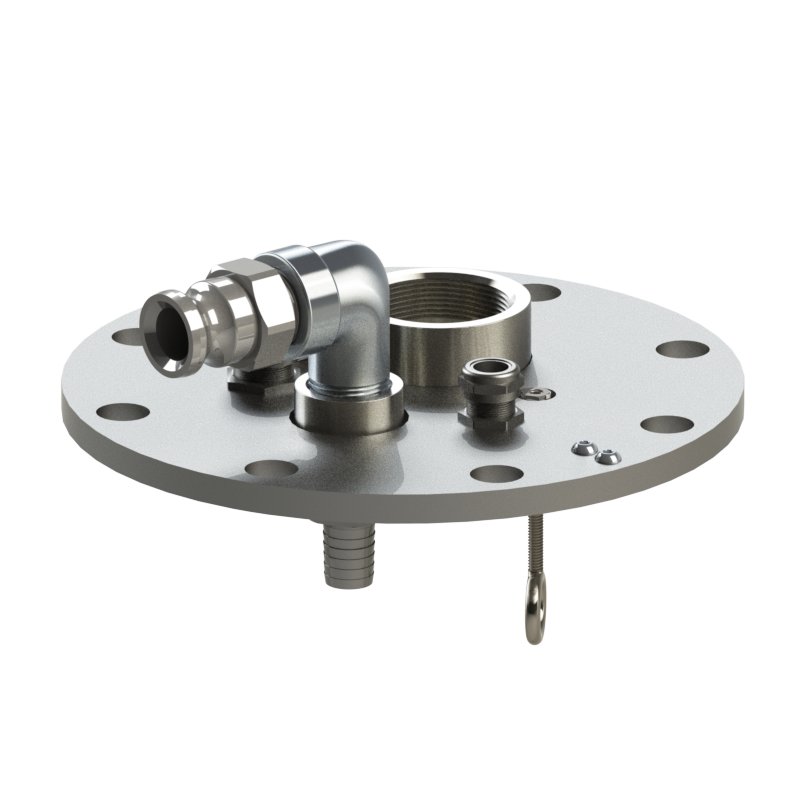

BILL OF MATERIAL
3000098
| ITEM NO. | PART NO. | DESCRIPTION | QTY. |
|---|---|---|---|
| 1 | 1000335 | PLUG, 3/4", STAINLESS STEEL | 1 |
| 2 | 1000331 | STRAIN RELIEF, STAINLESS STEEL, PVDF, M20 X 1.5" | 1 |
| 3 | 1000378 | CAP SCREW, 1/4"-20 X 3/8" BUTTON SOCKET | 2 |
| 4 | 1000375 | WASHER, FLAT, 1/4" NEOPRENE BONDED, SS | 2 |
| 5 | 1000376 | WASHER, LOCK, 1/4, SS | 2 |
| 6 | 1000377 | NUT, HEX, 1/4, SS | 2 |
| 7 | 1000374 | EYE BOLT, 1/4"-20 X 4, SS | 1 |
| 8 | 1000857 | HOSE BARB, CUSTOM, DISCHARGE, 1" NPT, SS | 1 |
| 9 | 2000123 | FLANGE, 6" SS MANIFOLD, DUAL EXT. | 1 |
| 10 | 1000332 | CAM-LOCK, 1", TYP F, SS | 1 |
| 11 | 1000402 | ELBOW, STREET, 1", SS | 1 |
| 12 | 1000332 | STRAIN RELIEF, STAINLESS STEEL, PVDF, M25 X 1.5" | 1 |
