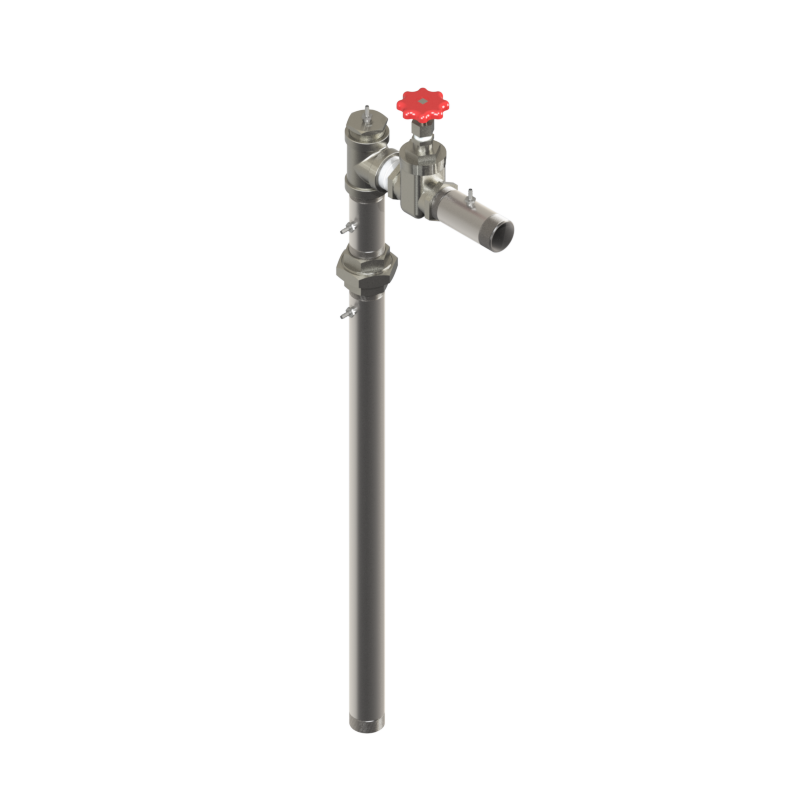

The High Temp Well Head is designed to withstand some of the most extreme conditions.  Composed of all stainless steel components, with a TYP 316 200# gate valve, and orifice plate, it also has 4 ¼” stainless steel sample points. Available in 2” and 3”.

Files

Bill of Material, Exploded View

Alternate Assemblies
  • Part Number 2000002 – SS Well Head, 2” High Temp
BILL OF MATERIAL
3000067
ITEM NO.PART NO. DESCRIPTIONQTY.
11000631ORIFICE PLATE, 2" X .40" SS1
21000632ORIFICE PLATE, 2" X .50" SS1
31000633ORIFICE PLATE, 2" X .75" SS2
41000007ORIFICE PLATE, 2" X 1" SS1
51000634ORIFICE PLATE, 2" X 1.25" SS1
61000635ORIFICE PLATE, 2" X 1.4" SS1
71000863NIPPLE, 2" X 36" T3041
81000937CAP, SAMPLE PORT, 1/4"4
91000005HOSE BARB, 1/4" X 1/4" MNPT, SS4
101000003UNION, 2" 150# T304 A3511
111000006NIPPLE, 2" X 6" T304/304L S40S2
121000002TEE- 2" 150# T304 A3511
131000001BUSHING, 2"x1/4" SS1
141000004NIPPLE, 2" X CLOSE T304/304L S40S1
151000000GATE VALVE, 2" 2029 HAITIMA 200# T316 SCRD1
